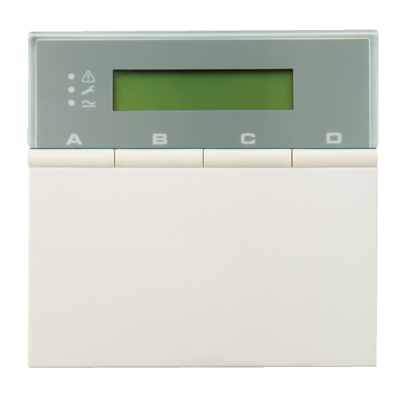

9940En & 9941En Keypads
The 9940En and 9941En keypads are designed to work with 9853, 9851, 9752, 9751 and 9651 alarm system control units. These keypads are a direct replacement for the 9930, and offers the advantage of smaller size and improved appearance. The 9940 keypad has a proximity tag reader coil fitted inside the case and can work with the same proximity tags as the 934 proximity reader module. The 9941 has no detector coil fitted.
Technical Specification
Environmental |
|
Class II |
Security |
|
Grade 3 |
Operating Temperature |
|
-10 to 55°C |
Humidity |
|
96% RH |
Dimensions |
|
115(w) x 115(h) x 24(d) mm |
Weight |
|
200g |
Current Consumption |
|
9940: 30mA max continuous backlight off
70mA max continuous backlight on. |
9941: 20mA max continuous backlight off
60mA max continuous backlight on. |
Compliance |
|
EN51031-1. For a full declarations of conformity, please visit www.coopersecurity.co.uk. |
|
